B6 11 kW Portable EV Charger Type 2 – 3-Phase 16A – 5 Meter Cable

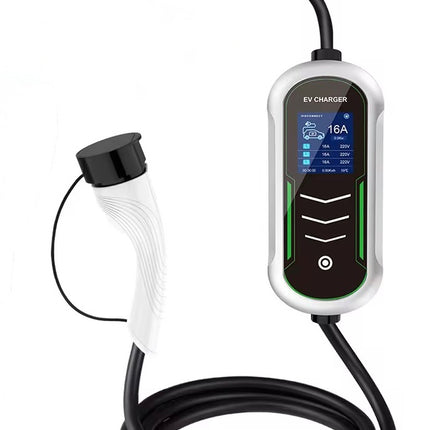

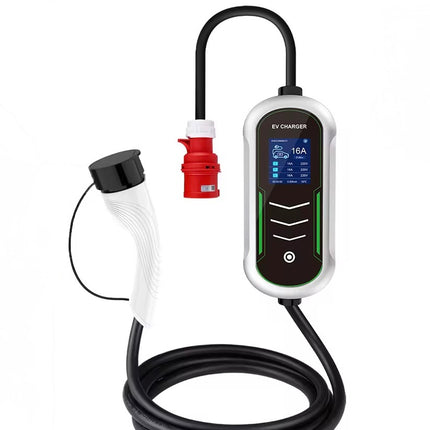

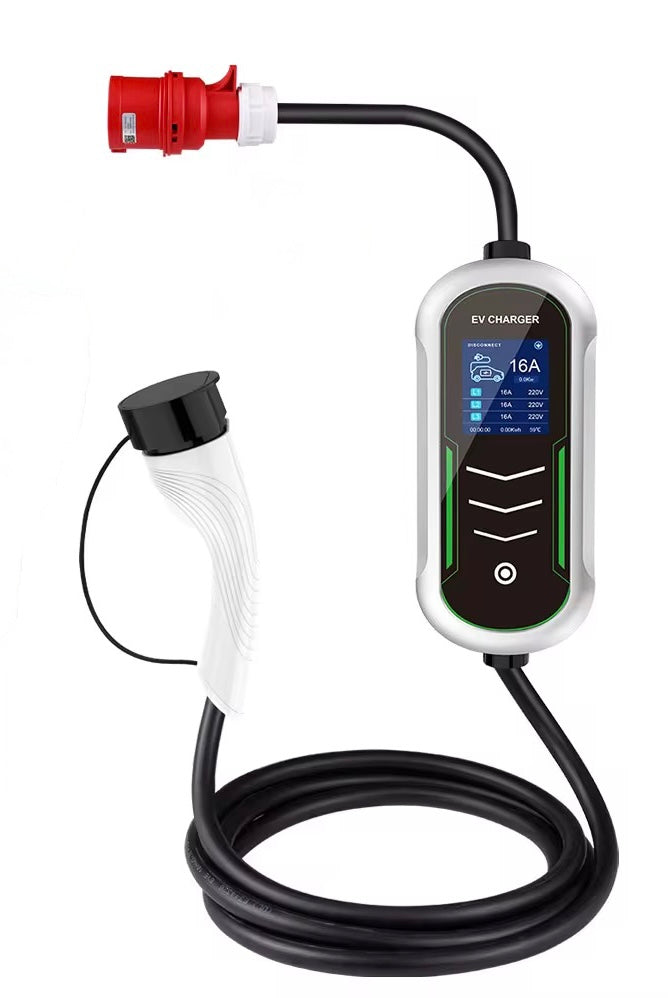

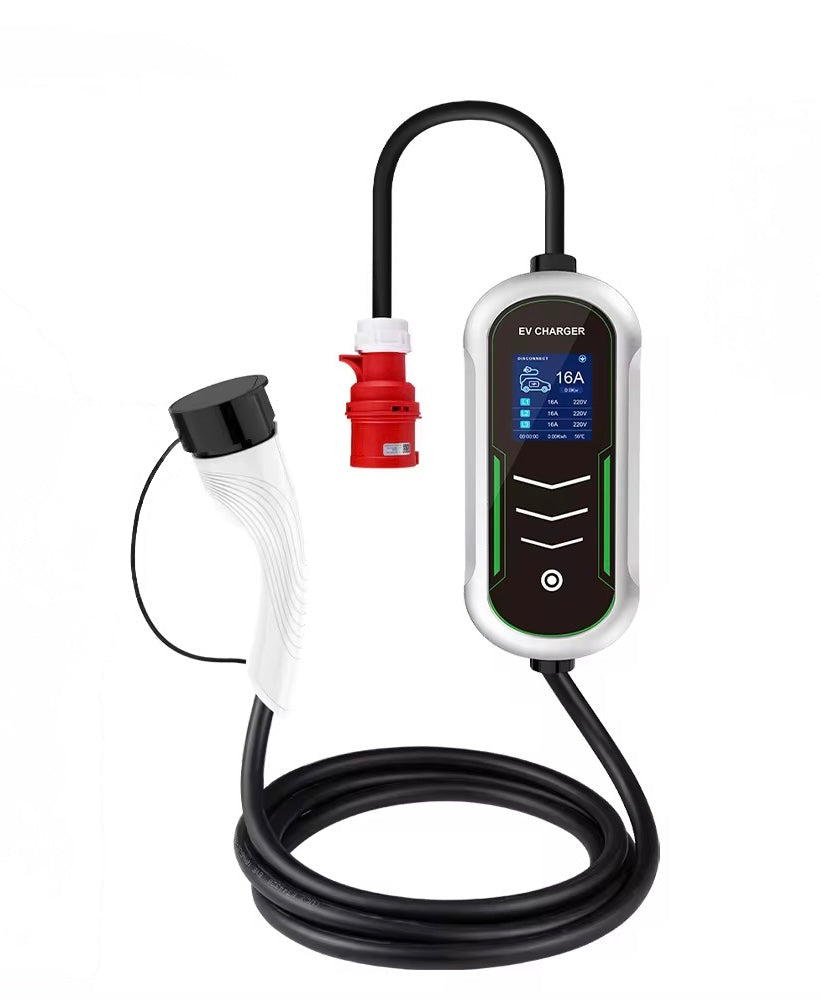

Want to charge at up to 11 kW via a 3-phase connection? The Bar2Charge B6 is a portable 11 kW EV charger with a fixed 5-metre Type 2 charging cable. The charger is intended for electric cars and plug-in hybrids that support 3-phase AC charging.

Thanks to its portable design, you can use the B6 at home, at work or on the road, provided a suitable 3-phase connection is available.

Why choose the Bar2Charge B6?

• Up to 11 kW charging power: suitable for 3-phase charging at up to 16A, when supported by the car and electrical installation.

• Adjustable charging current: choose 8A, 10A, 13A or 16A.

• Type 2 charging plug: suitable for electric cars and plug-in hybrids with Type 2.

• 5-metre fixed charging cable: practical for use at home, at work and on the road.

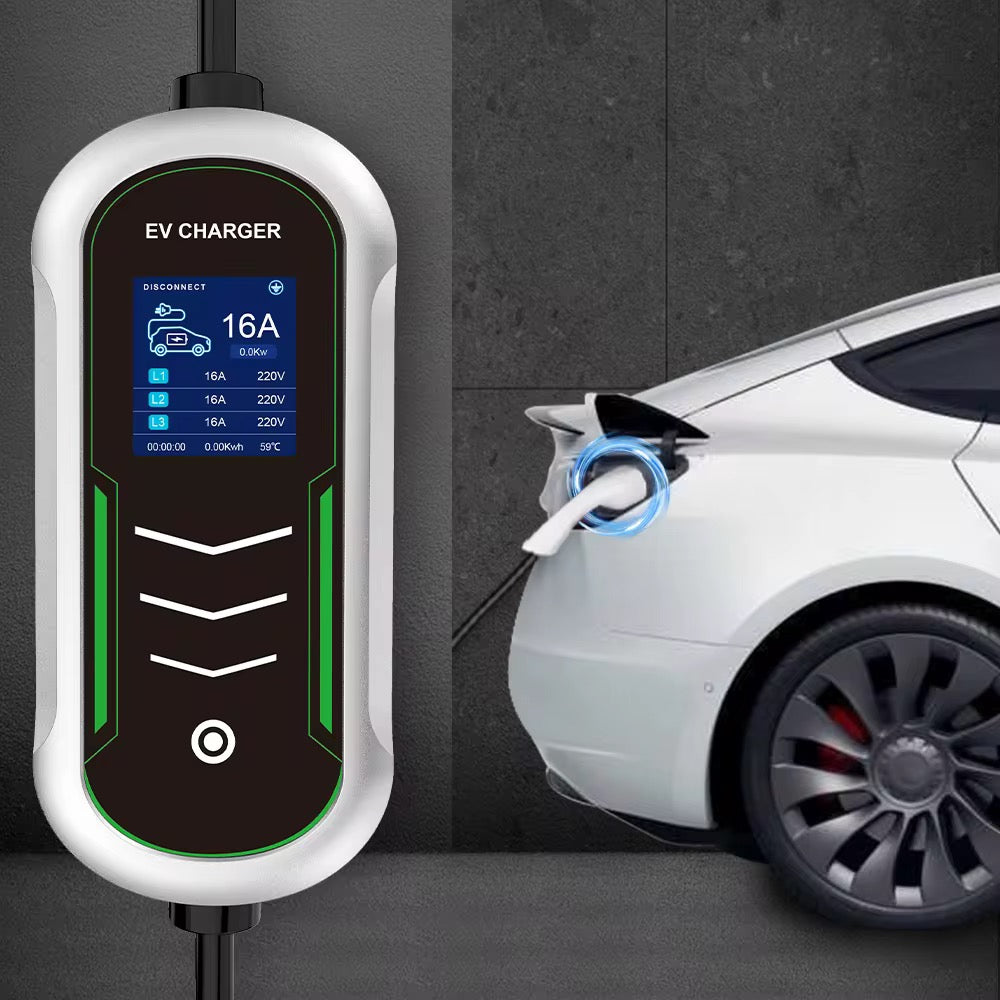

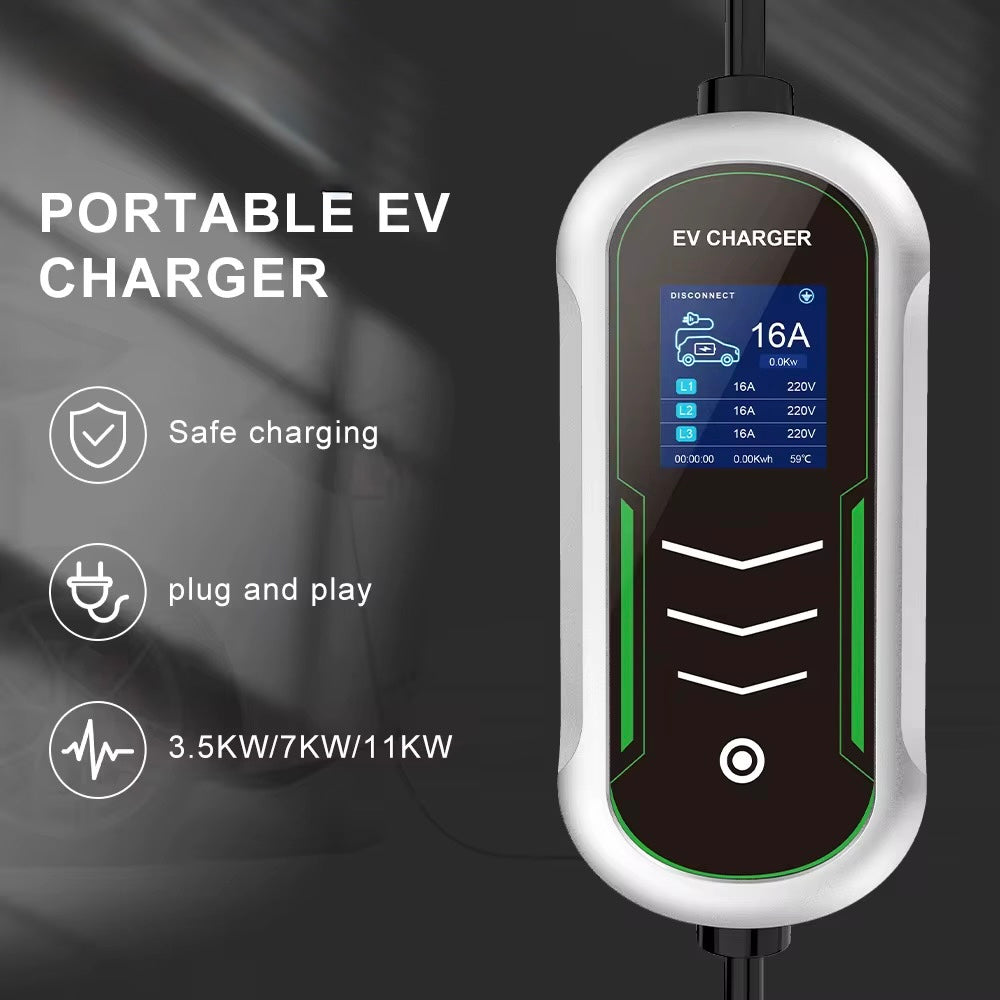

• OLED display: shows real-time information about charging status, current setting and energy consumption.

• Timer function: delay charging by 1 to 8 hours, for example to start later in the evening.

• Memory function: the last set charging current is remembered automatically.

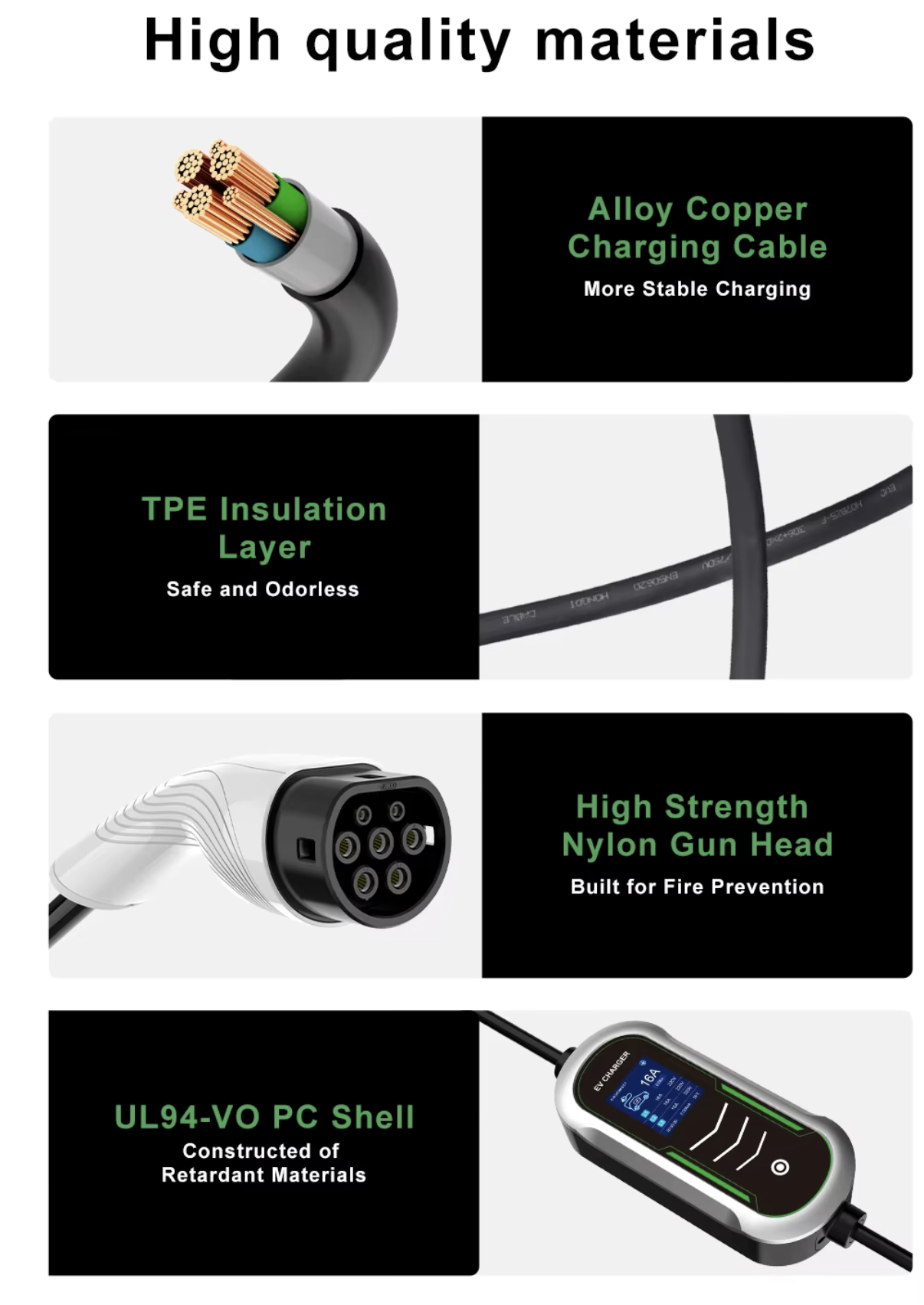

• Flame-retardant housing: made from PC material with a UL94V-0 rating.

When can you achieve 11 kW?

To achieve the maximum charging power of 11 kW, the 3-phase connection, cabling, protection and the car’s onboard charger must be suitable for 3-phase 16A charging. If your car supports a lower AC charging power, it will charge at the lower supported power.

Optional charging via a standard socket

With a suitable adapter, available separately, the B6 can also be used via a standard socket. In that case, the maximum charging power is considerably lower than 11 kW, and the charging current must be matched to what the socket and electrical installation can safely provide.

Safe charging

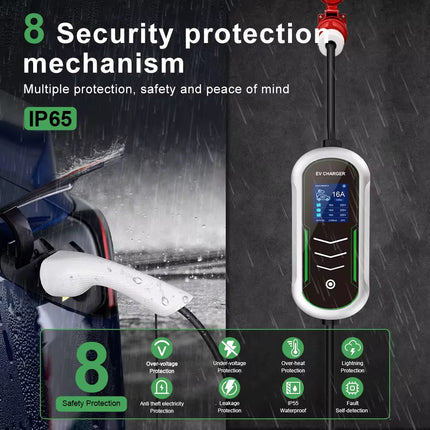

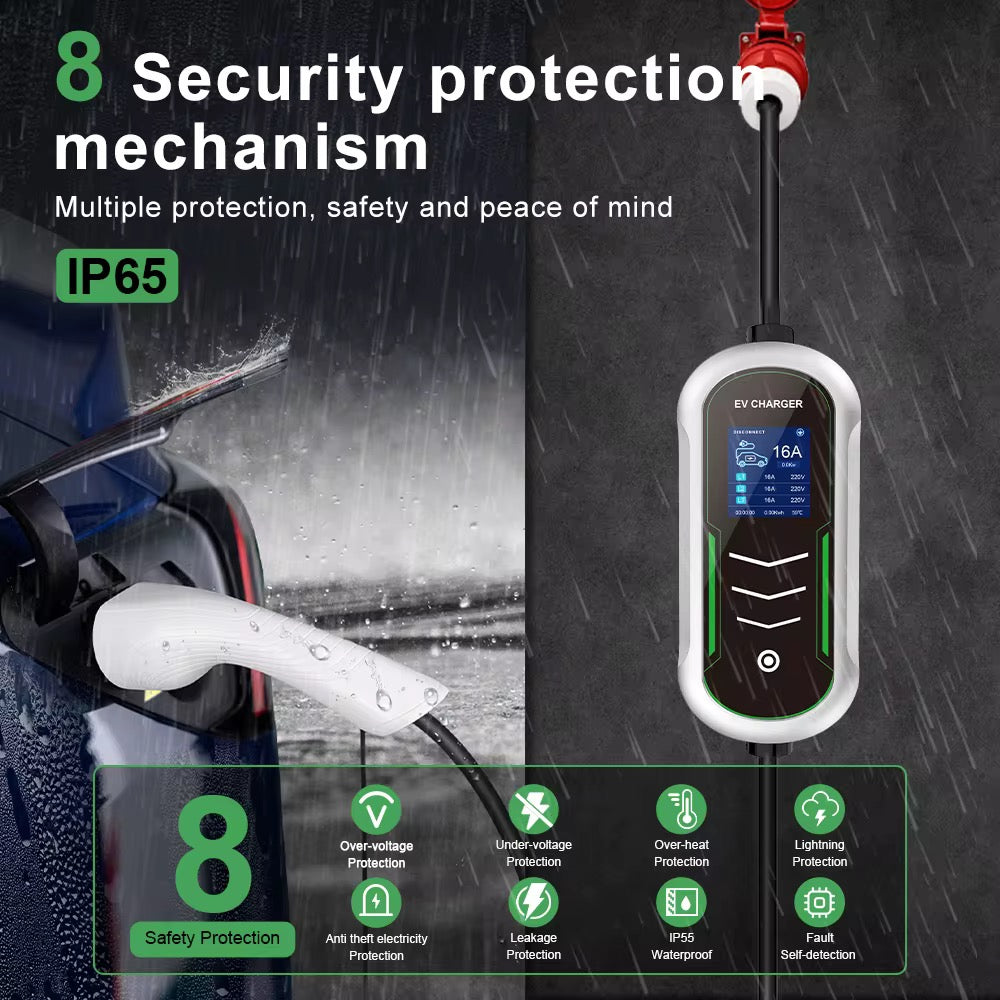

The B6 features multiple protection functions against, among other things, overheating, leakage current, overcurrent, overvoltage, undervoltage and short circuits.

For 11 kW charging, use only a suitable, correctly installed and protected 3-phase connection. If in doubt, have the connection checked by a qualified installer and fully uncoil the charging cable during use.

Key specifications

Brand: Bar2Charge

Model: B6

Product type: portable EV charger

Maximum charging power: 11 kW

Number of phases: 3-phase

Adjustable charging current: 8A, 10A, 13A or 16A

Vehicle plug: fixed Type 2 charging plug

Cable length: 5 metres

Display: OLED

Timer function: 1–8 hours

Memory function: yes

Frequency: 50/60 Hz

Operating temperature: -30°C to +50°C

Weight: approximately 3 kg

What is included?

• Bar2Charge B6 11 kW portable home charger

• Fixed 5-metre Type 2 charging cable

• User manual

Not sure whether 11 kW, 3-phase or Type 2 is suitable for your car? Use the Bar2Charge Car Selection Guide to view suitable charging solutions for your make and model.
