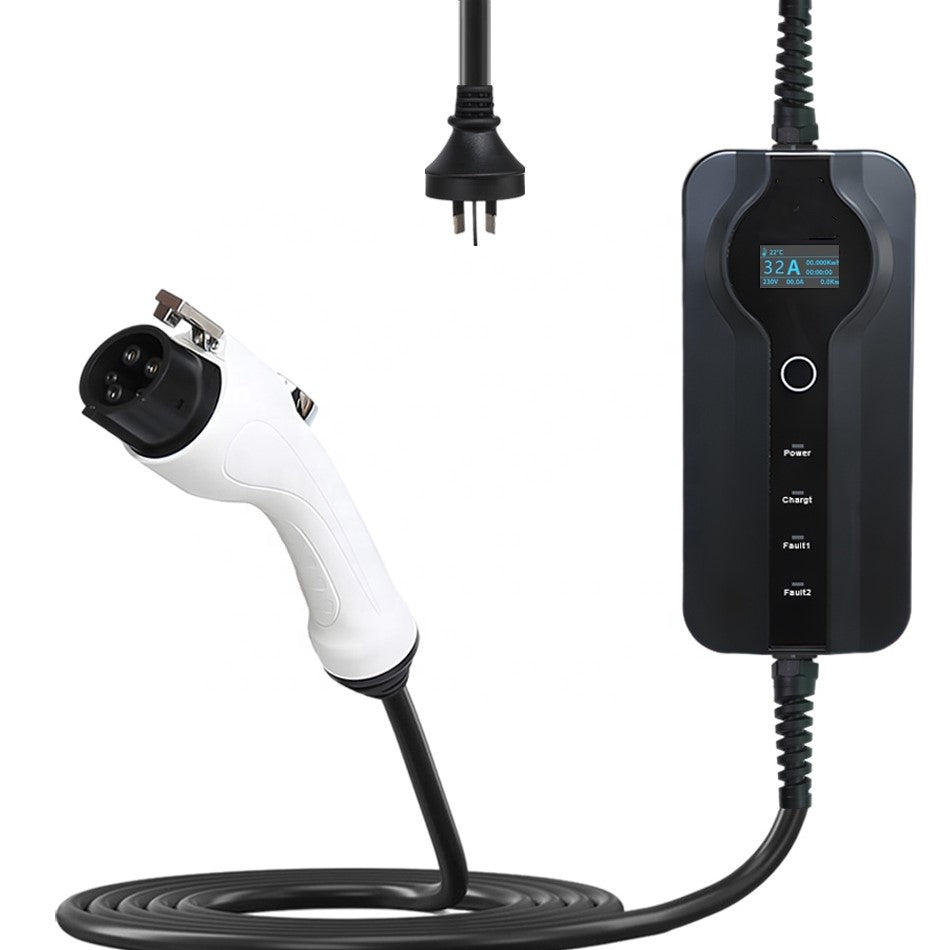

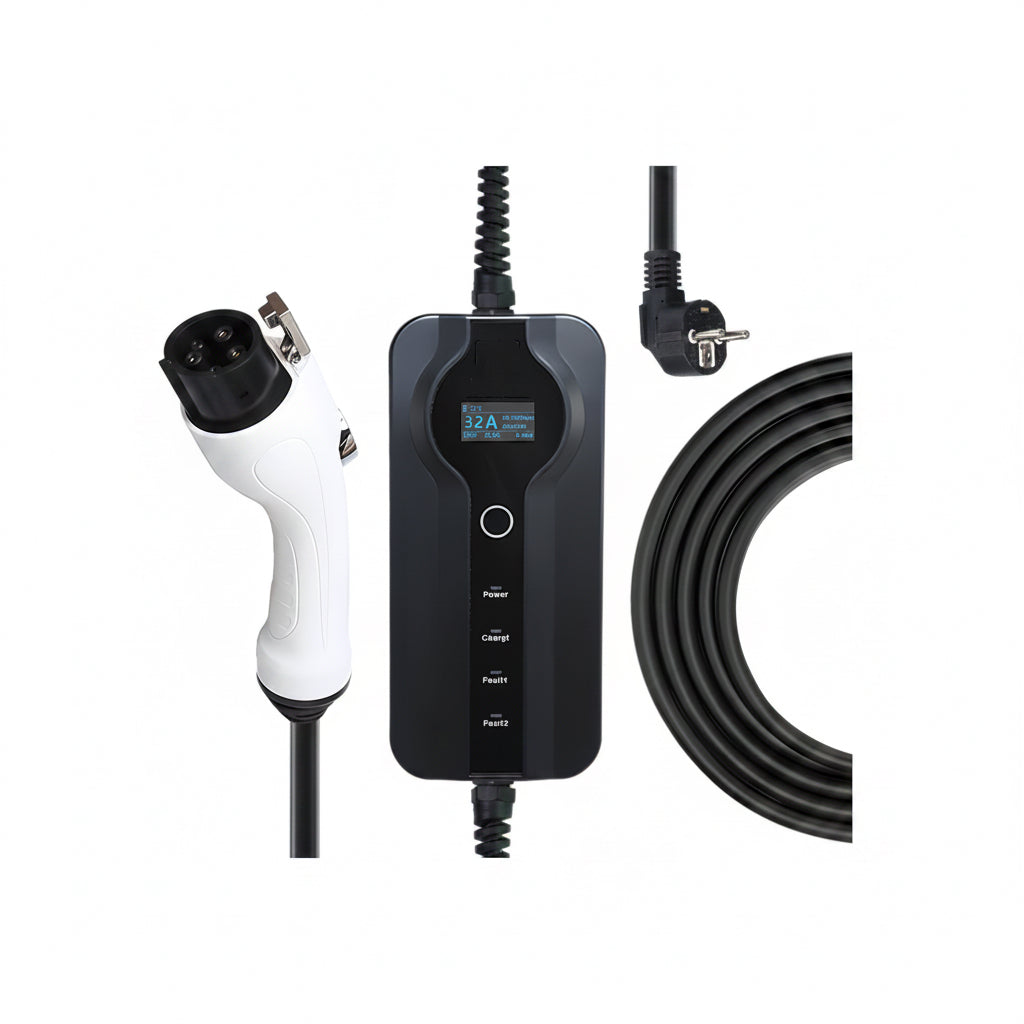

Bar2Charge Mode 2 Portable Home Charger 3.7 kW Type 1 – IP65 | 7 m

Do you drive an electric car or plug-in hybrid with a Type 1 charging connection? The Bar2Charge Mode 2 Mobile Home Charger delivers up to 3.7 kW and is specially designed for vehicles with Type 1. Connect the charger directly to a properly grounded 230V Schuko socket, without a fixed charging station.

The fixed 7-metre Type 1 charging cable provides extra reach when the socket is farther from the charging port. This version works without an app and is configured directly on the charging unit.

Why choose this Type 1 mobile home charger?

• Specially designed for Type 1: suitable for electric cars and plug-in hybrids with a Type 1 charging connection.

• Maximum charging capacity of 3.7 kW: practical for daily top-ups and plug-in hybrids.

• Adjustable from 6A to 16A: choose 6A, 8A, 10A, 13A or 16A.

• 7-metre charging cable: extra reach on the driveway, in the garage or on the road.

• Delayed charging: set on the charging unit when charging should start later.

• Memory function: the last selected charging current is automatically remembered.

• LCD screen: displays, among other things, charging status, voltage, current, charging capacity, charging time, temperature and energy consumption in kWh.

• IP65 protection: dust-tight and protected against water jets.

Which cars is Type 1 intended for?

Type 1 is mainly found on older electric cars, plug-in hybrids and imported models. Examples include, depending on the model year and version, older Nissan Leaf models, Mitsubishi Outlander PHEV, Peugeot iOn, Citroën C-Zero and older Ford Focus Electric models.

Always check your car’s connection before ordering. Not sure? Use the Car Selector at the bottom of this product description.

Safe charging via a socket

The charger has several integrated safety features, including residual-current protection, short-circuit protection, overcurrent protection, overload protection, overheat protection, overvoltage protection, undervoltage protection and grounding monitoring.

Connect the mobile home charger directly to a properly grounded socket. When charging at 16A for extended periods, check that the socket and electrical installation are suitable for this continuous load. Do not use a regular power strip or a coiled extension cable.

Key specifications

Brand: Bar2Charge

Product type: mobile home charger

Charging mode: Mode 2

Maximum charging capacity: 3.7 kW

Mains-side connection: single-phase 230V Schuko

Adjustable charging current: 6A, 8A, 10A, 13A or 16A

Vehicle connector: fixed Type 1 charging plug

Cable length: 7 metres

App control: no

Memory function: yes

Delayed charging: yes

LCD screen: yes

Protection rating: IP65

Warranty: 2 years

What is included?

• Bar2Charge Mode 2 mobile home charger

• Fixed 7-metre Type 1 charging cable

• Carrying bag

• English-language manual

Not sure whether Type 1 and 3.7 kW are suitable for your car? Use the Bar2Charge Car Selector to view suitable charging solutions for your make and model.
