Bar2Charge Type 2 Charging Cable Purple – 3.7 kW | ST-250

Purple Type 2 charging cable for electric cars and plug-in hybrids

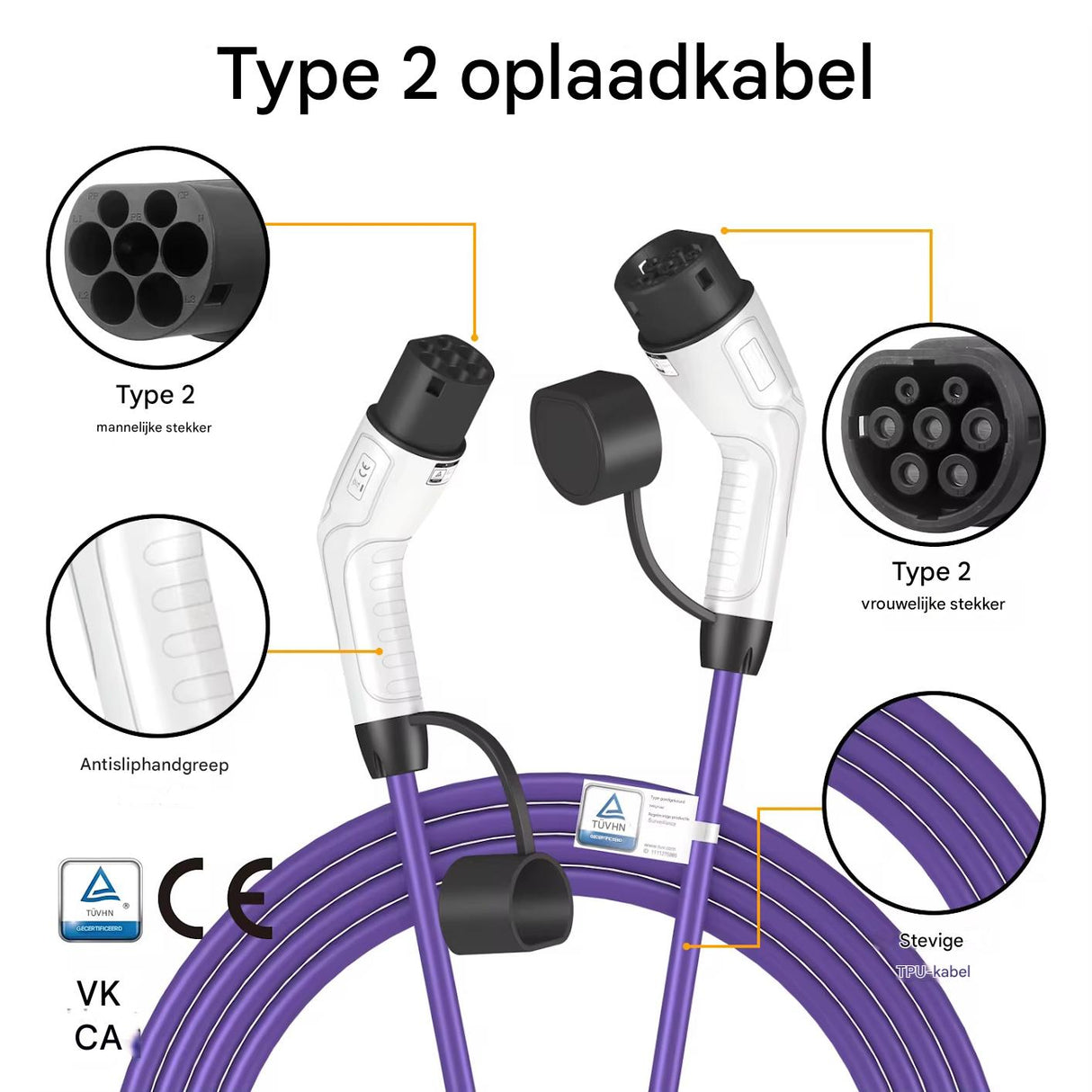

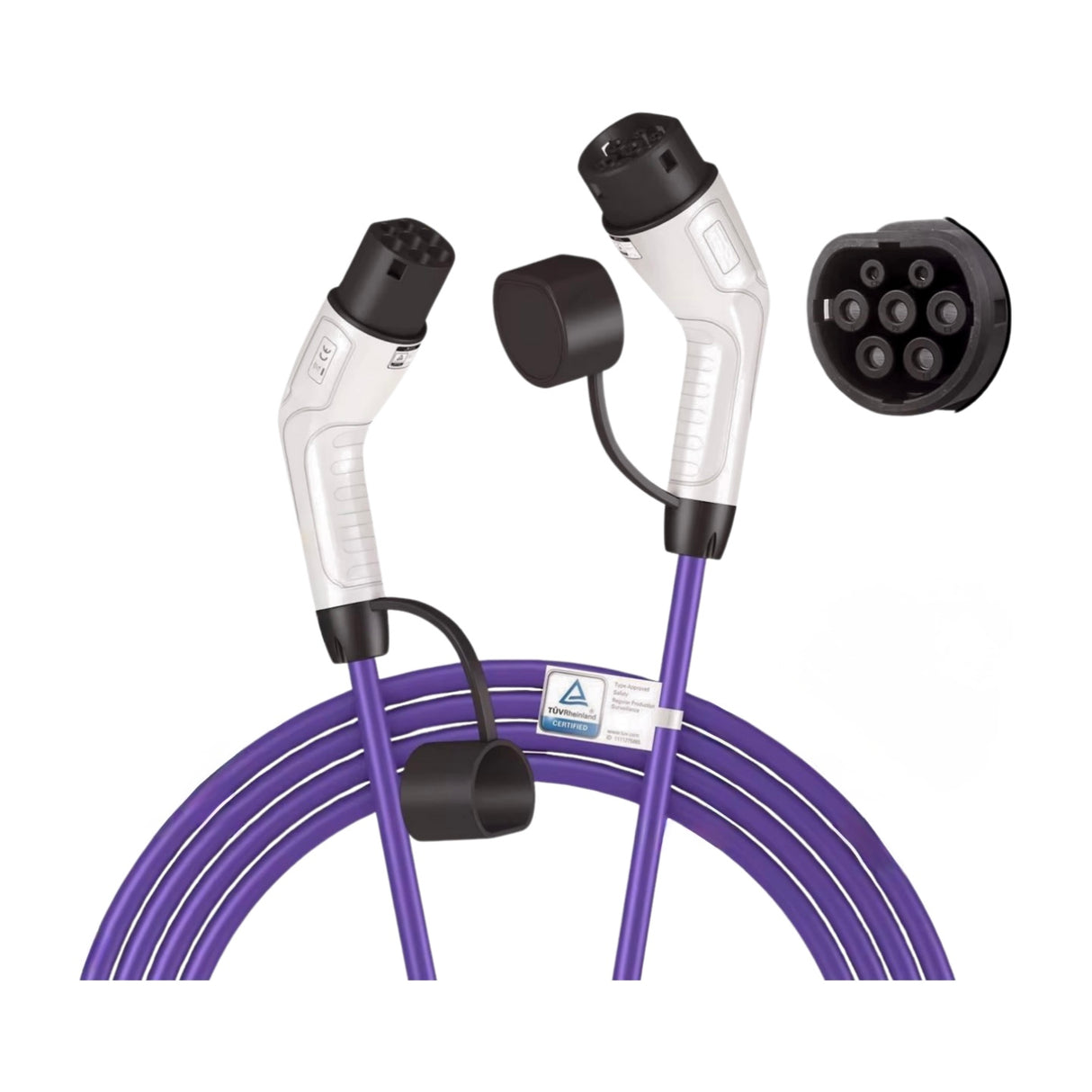

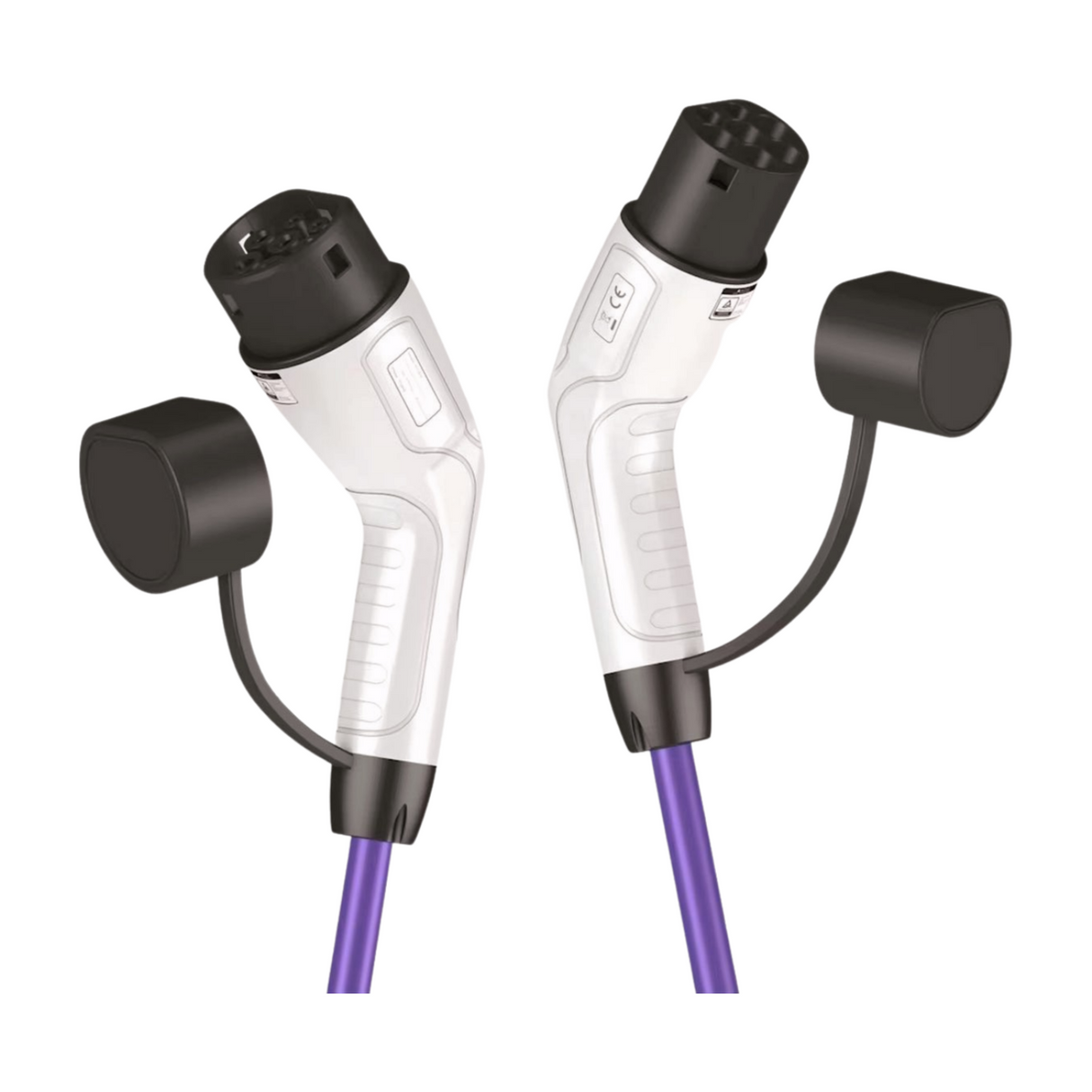

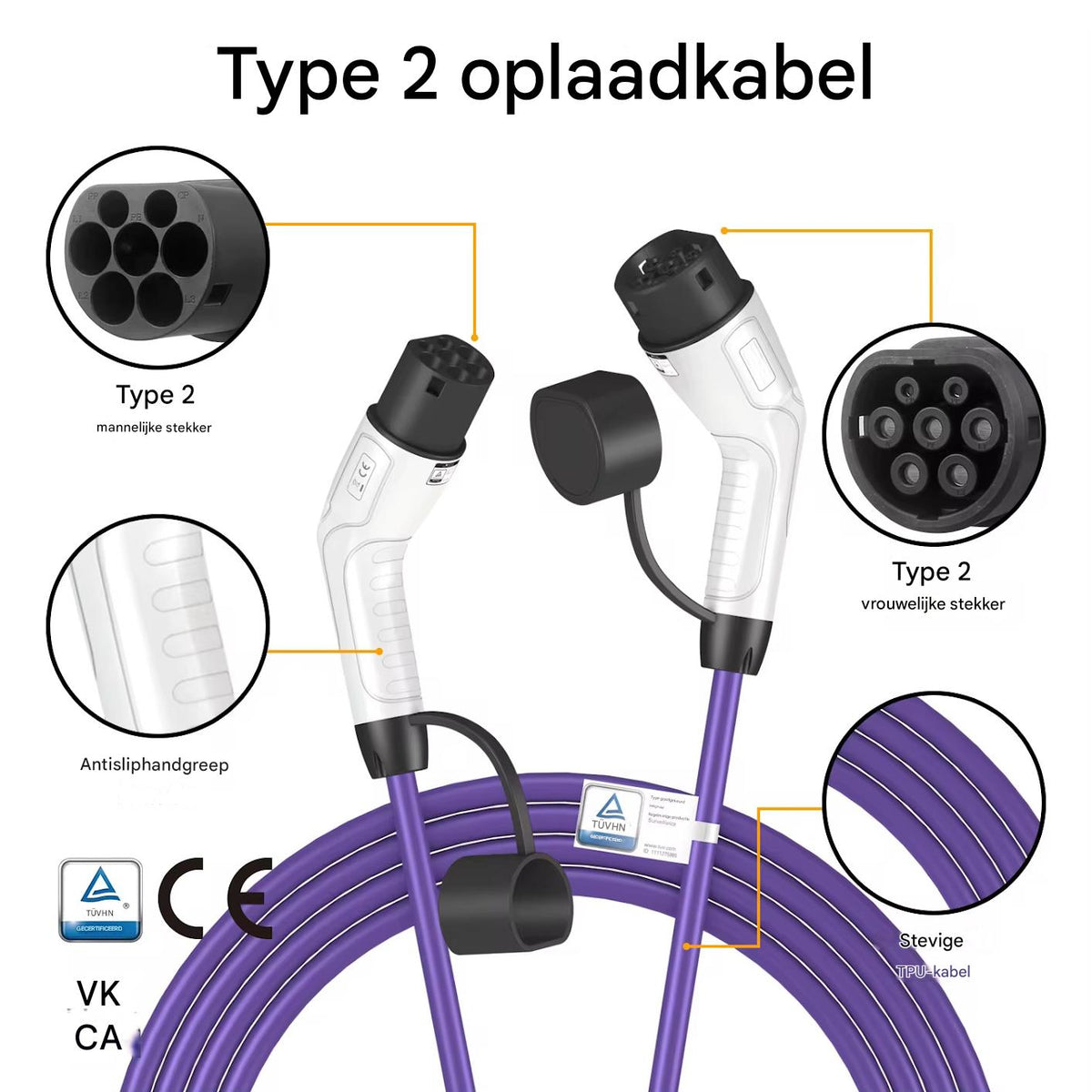

With the purple Bar2Charge ST-250 charging cable, you can safely and reliably charge your electric car or plug-in hybrid at a public charging station or wallbox with a Type 2 connection. The cable has a Type 2 plug on both ends, also known as Mennekes, and is ready to use straight away.

With a maximum charging capacity of 3.7 kW at single-phase 16A, this charging cable is particularly suitable for plug-in hybrids and electric cars that can charge at up to 3.7 kW via AC.

The striking purple design makes the cable easy to recognize. Thanks to its length of 7.5 metres, you have plenty of freedom of movement when your car’s charging port is not directly next to the charging point.

Why choose this charging cable?

• Type 2 to Type 2 connection

• Maximum charging capacity of 3.7 kW

• Suitable for single-phase charging at up to 16A

• Practical cable length of 7.5 metres

• Striking purple design

• Suitable for public charging stations and wallboxes with a Type 2 connection

• Flexible and wear-resistant TPU cable

• Halogen-free and flame-retardant cable sheath

• Copper conductors with silver-plated contact pins

• IP54 when the protective cap is correctly fitted

• IP55 when the plug and socket are correctly connected to each other

• CE and TÜV certified

• Includes a free storage bag

• 2-year warranty

Protected during use and storage

When the protective cap is correctly fitted to the disconnected plug, the connection has an IP54 protection rating. When the plug is correctly connected to the car’s or charging point’s socket, an IP55 protection rating applies.

Always replace the protective cap after use and store the charging cable clean and dry. Do not leave plugs in water and regularly check the cable and connections for damage.

Flexible 7.5-metre cable

The 7.5-metre length provides extra freedom of movement in different parking positions. This makes it easier to bridge the distance between the charging point and your car’s charging port.

The cable sheath is made of flexible and wear-resistant TPU and is designed for daily use. The copper conductors and silver-plated contact pins ensure reliable power transmission and a secure connection.

After use, you can easily store the charging cable in the included storage bag. This keeps the cable tidy and protected in the boot.

Suitable for cars with a Type 2 connection

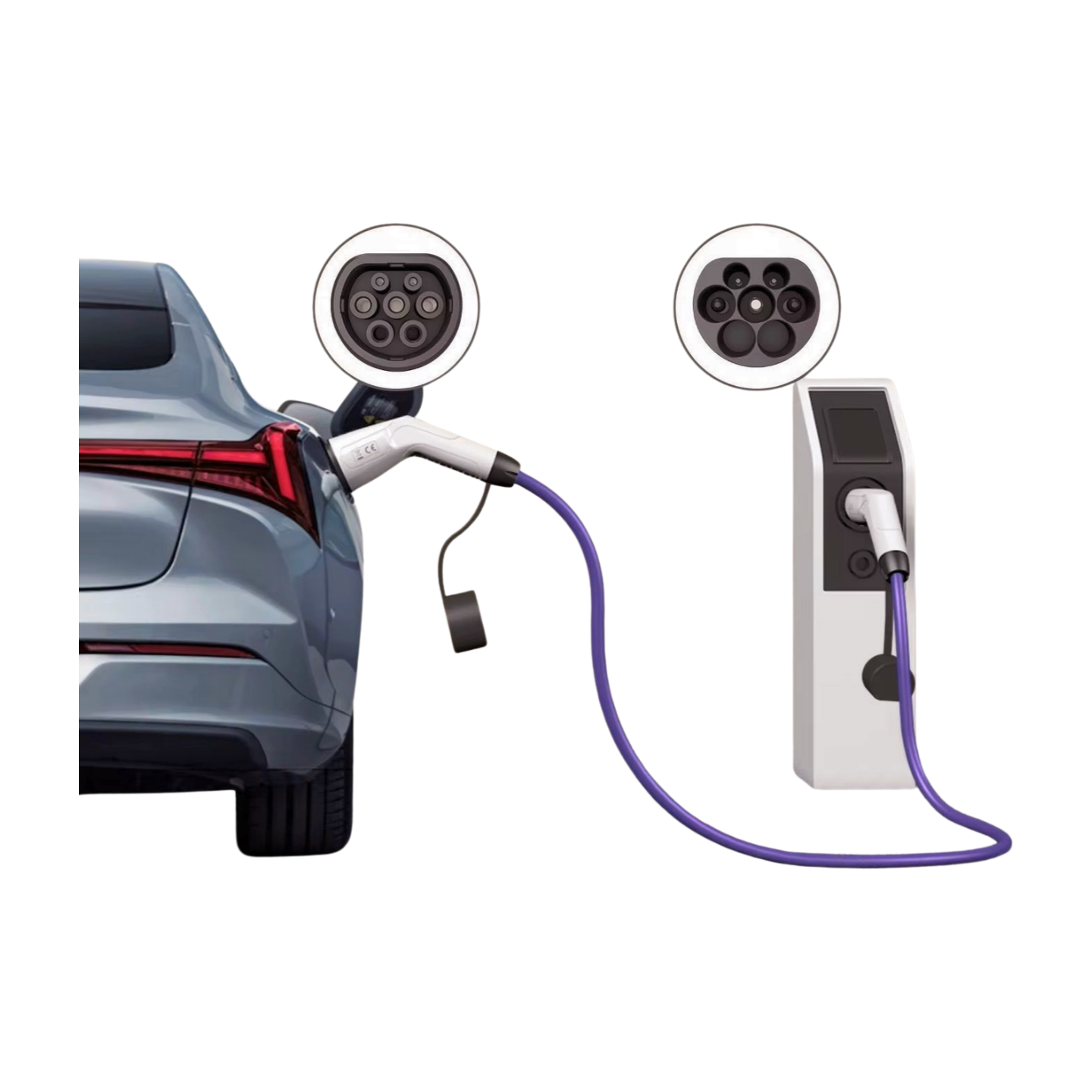

This charging cable is suitable for electric cars and plug-in hybrids with a Type 2 charging connection. The final charging capacity is determined by the combination of the car, charging point and charging cable.

Can your car charge at up to 3.7 kW via AC? Then this single-phase 16A charging cable is a suitable choice. If your car can charge faster, the charging capacity will be limited to a maximum of 3.7 kW when using this cable.

Please note

This is a standalone Mode 3 charging cable for use with a public charging station or wallbox with a Type 2 connection. The cable cannot be connected directly to a standard power socket. For this, you need a suitable mobile home charger.

Technical specifications

• Brand: Bar2Charge

• Model: ST-250

• Car-side connection: Type 2

• Charging point-side connection: Type 2

• Charging mode: Mode 3

• Maximum charging capacity: 3.7 kW

• Number of phases: single-phase

• Maximum current: 16A

• Cable length: 7.5 metres

• Cable material: flexible TPU

• Conductor: 3 × 2.5 mm² + 0.5 mm² signal wire

• Outer diameter: approximately 11 mm

• Protection rating with protective cap fitted: IP54

• Protection rating with plug and socket connected: IP55

• Certification: CE and TÜV

• Colour: purple

• Included: storage bag

• Warranty: 2 years
