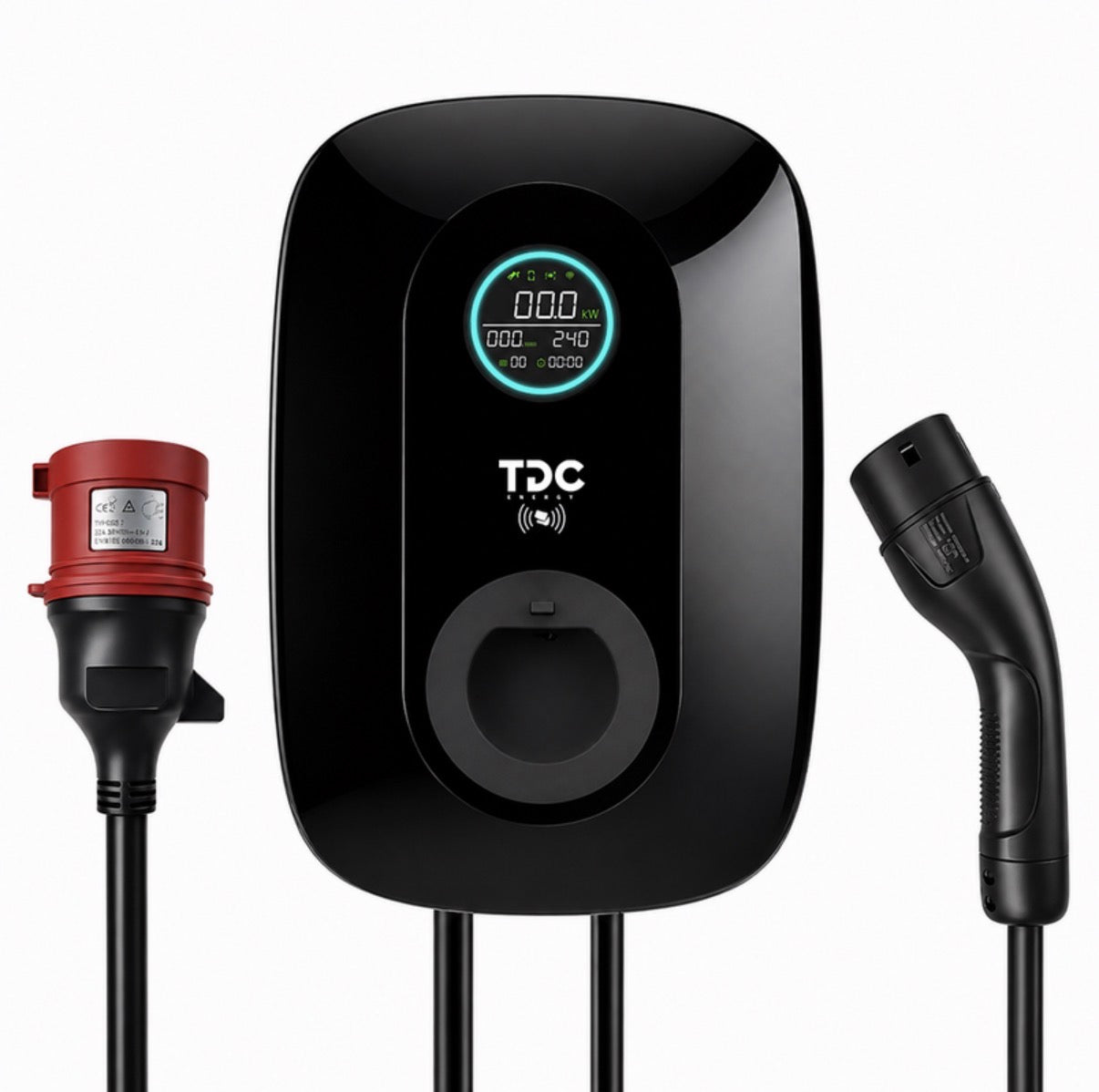

TDC Energy RAC11 11 kW EV charger – App & RFID

This complete 11 kW charging station is suitable for home and commercial use. The charging station operates on a 3-phase 400V connection and comes with a fixed 5-meter Type 2 charging cable and a 5-pin 16A CEE plug.

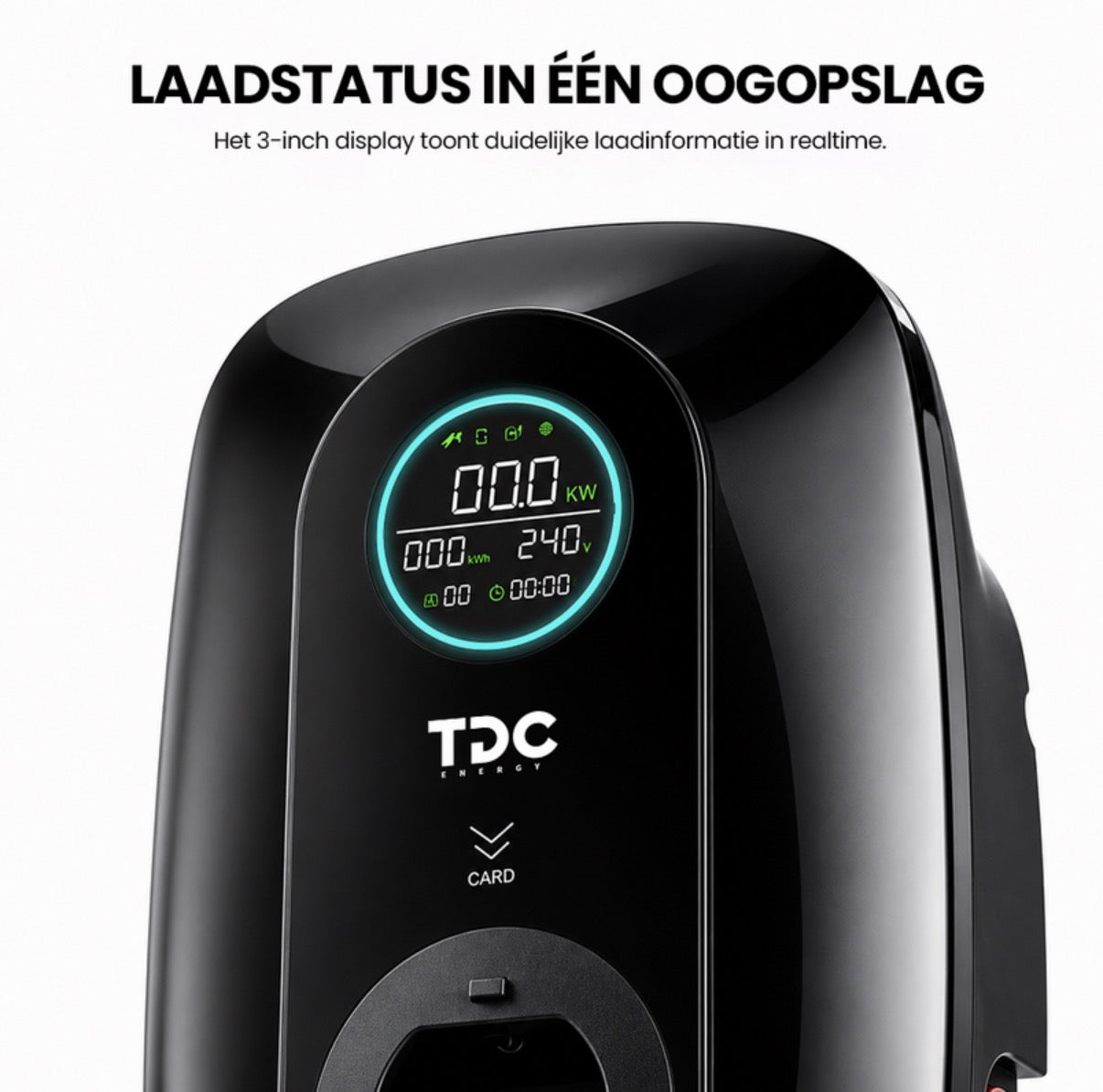

Start charging via the app or with one of the two included RFID cards. The clear 3-inch LCD screen displays the current charging status and important charging information during charging.

Key benefits

• Charging capacity of up to 11 kW

• Suitable for 3-phase 400V and up to 16A

• Fixed 5-metre Type 2 charging cable

• Equipped with a 5-pin 16A CEE plug

• Control via app and RFID

• Wi-Fi and Bluetooth connectivity

• Includes two RFID cards

• Clear 3-inch LCD screen

• Comprehensive electrical protection

• Emergency stop for added safety

• Suitable for wall mounting

• 2-year warranty

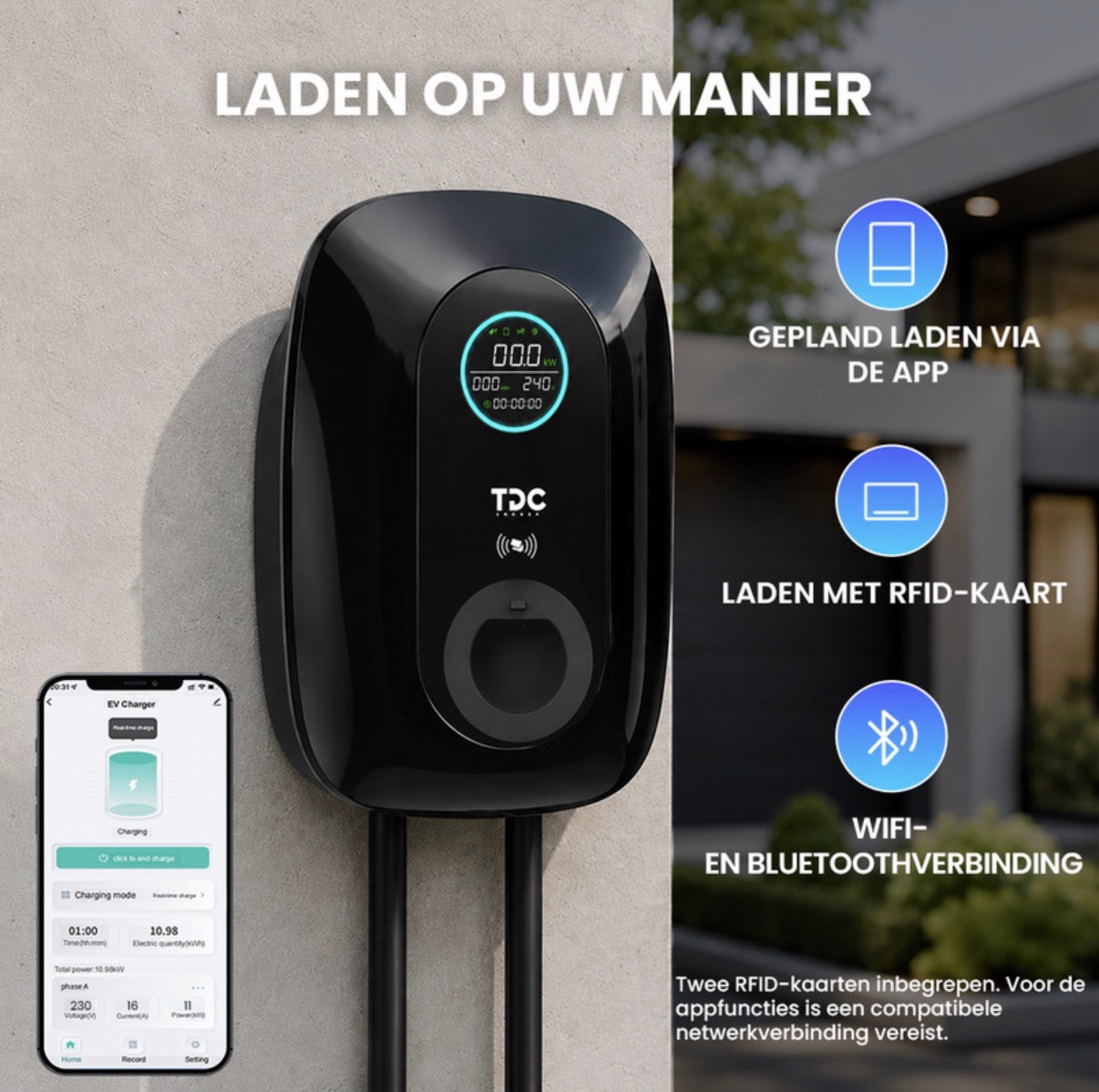

App and RFID control

You can manage the charging process, schedule a charging session, and view the current charging status via the app. A compatible Wi-Fi or Bluetooth connection is required for this.

Charging without a network connection is also possible. Hold one of the included RFID cards up to the reader to start the charging session. This makes the RAC11 suitable for shared parking spaces and locations where only authorized users may charge.

5-meter Type 2 charging cable

The fixed 5-meter Type 2 charging cable provides sufficient reach for everyday use. The charging station is suitable for electric cars and plug-in hybrids with a Type 2 charging connection according to IEC 62196-2.

The actual charging capacity depends on the electrical installation and the vehicle’s maximum AC charging capacity.

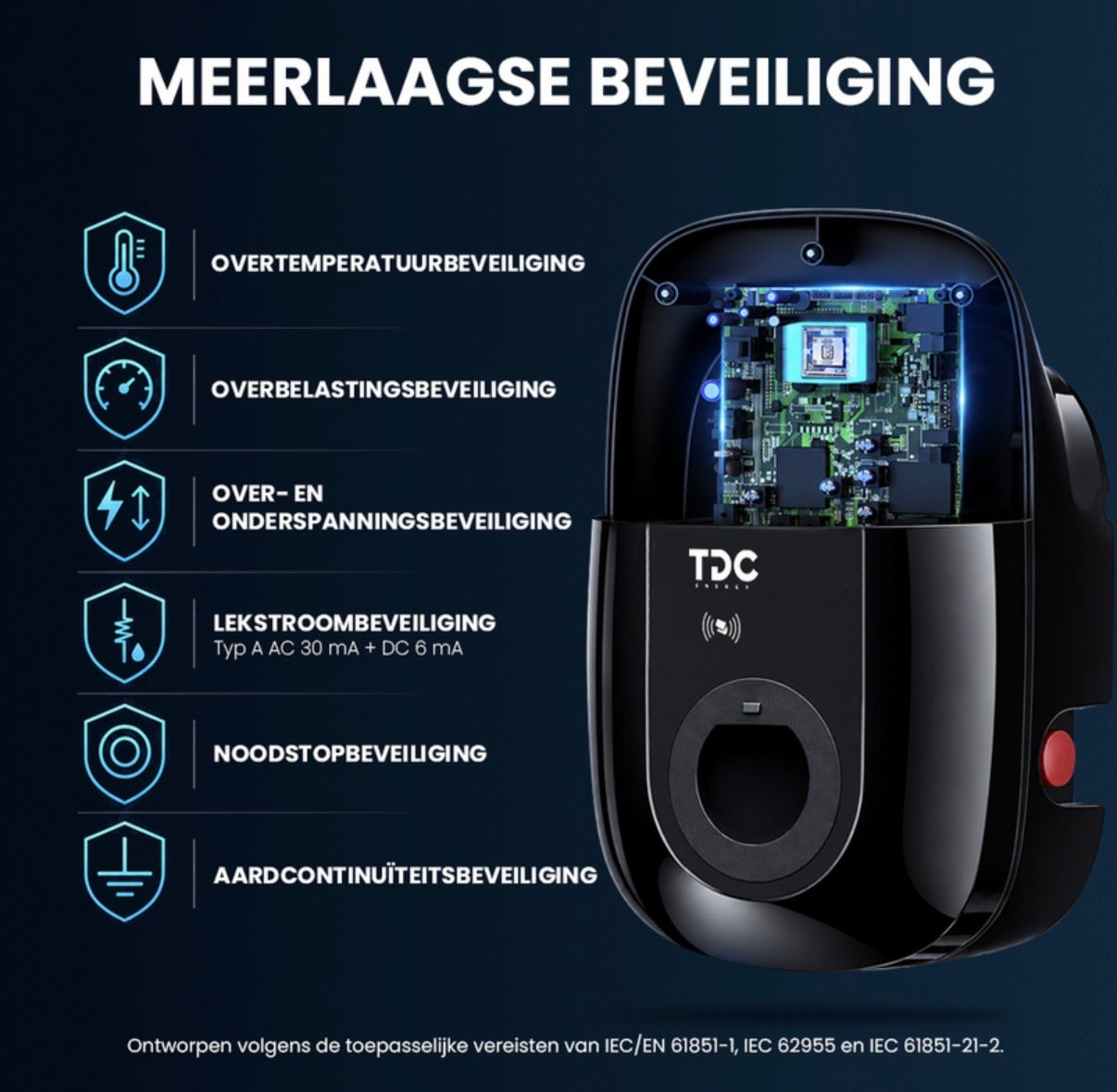

Comprehensive protection

• Overvoltage protection

• Undervoltage protection

• Overload protection

• Overtemperature protection

• Earth continuity protection

• Emergency stop protection

• Residual current protection: 30 mA AC + 6 mA DC

Technical specifications

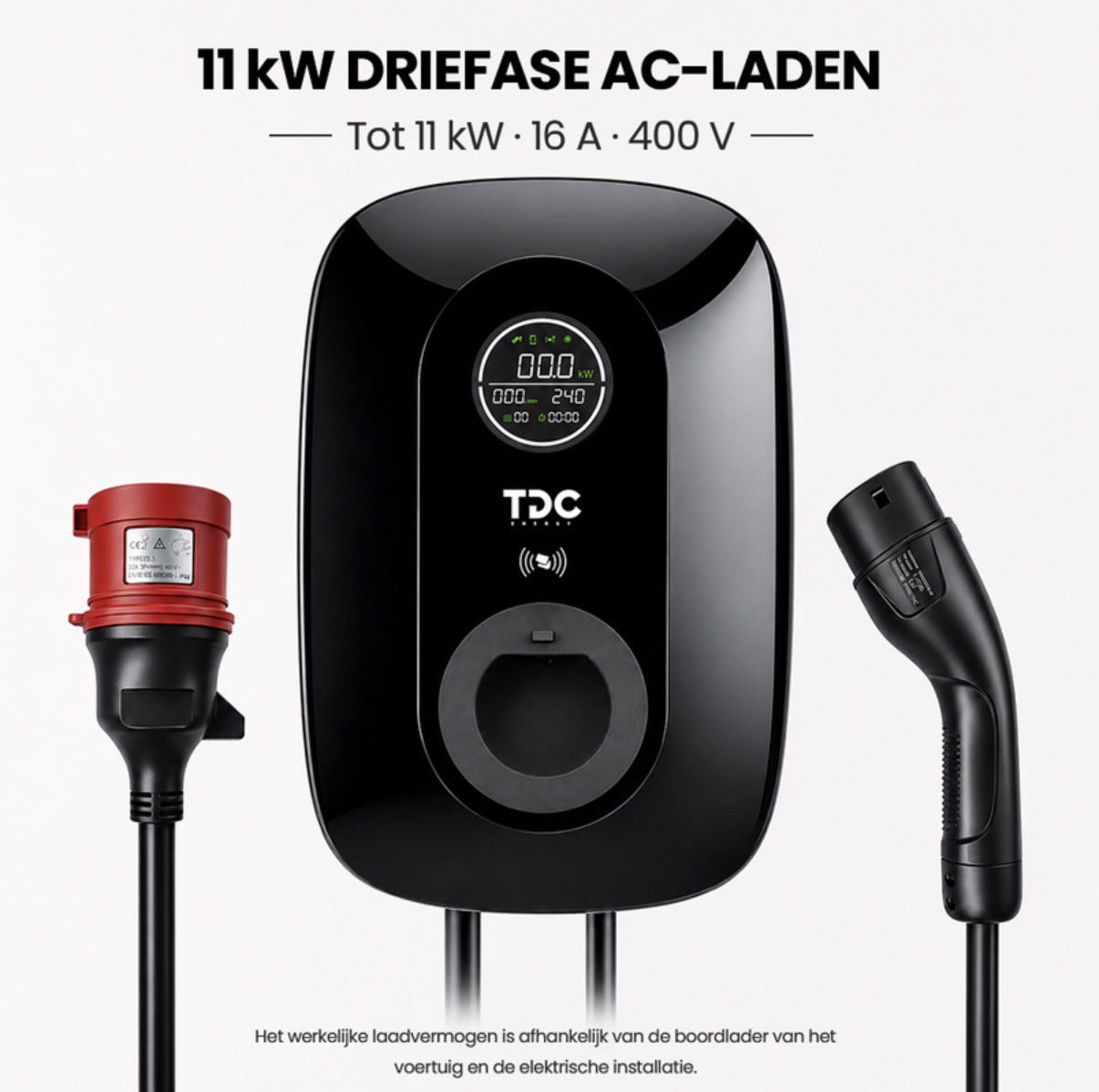

• Charging capacity: up to 11 kW

• Connection: 3-phase, 400V

• Maximum charging current: 16A

• Frequency: 50 Hz

• Vehicle connector: Type 2

• Cable length: 5 meters

• Installation side: 5-pin 16A CEE plug

• Control: app and RFID

• Connectivity: Wi-Fi and Bluetooth ( Smartlife )

• Display: 3-inch segment LCD

• Mounting: wall mounting

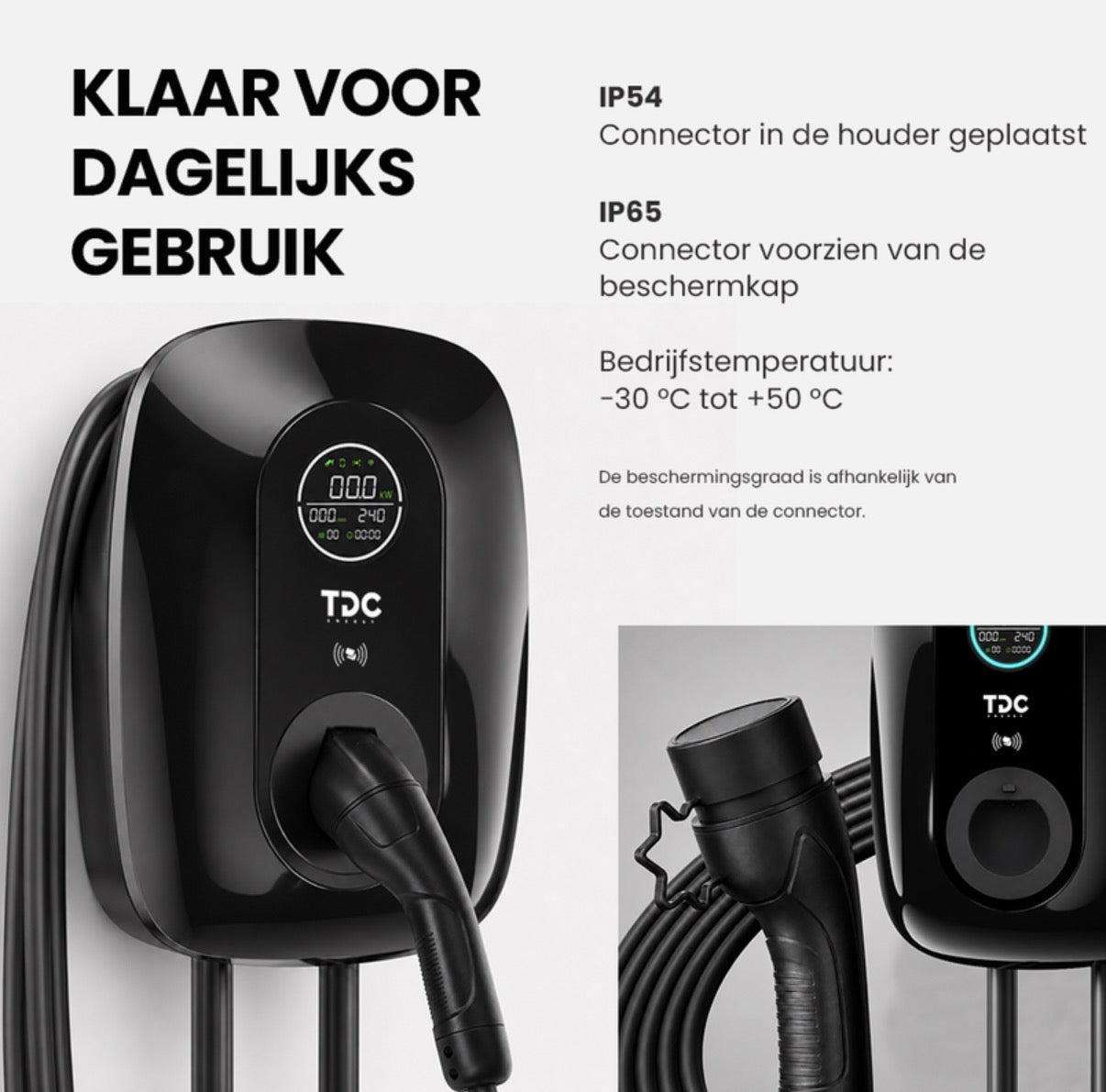

• Connector protection rating: IP54 in the holder

• Connector protection rating: IP65 with protective cap

• Operating temperature: -30 °C to +50 °C

• Dimensions: 368 × 256 × 133.3 mm

• Weight: approximately 4.42 kg

• Warranty: 2 years

Package contents

• Charging station

• Fixed 5-metre Type 2 charging cable

• 5-pin CEE 16 A plug

• 2 RFID cards

• Connector holder

• Mounting materials

• User manual

Suitable for virtually all electric cars with Type 2

Suitable for many models from, among others: Audi, BMW, BYD, Cupra, Ford, Hyundai, Kia, Mercedes-Benz, MG, MINI, Nissan, Opel, Peugeot, Polestar, Porsche, Renault, Škoda, Tesla, Toyota, Volkswagen, and Volvo.

The actual charging capacity depends on the vehicle's built-in AC onboard charger.

Simple and smart charging without unnecessarily expensive extras

This TDC ENERGY charging station is perfect for users who simply want to charge their electric car safely and conveniently, without paying for extensive business features they do not need.

With the free app, you can easily start charging, view the current charging status, and schedule a charging session. Prefer to charge without an app? Then use one of the two included RFID cards.

With a charging capacity of up to 11 kW, a fixed 5-metre Type 2 cable, and a clear display, this charging station offers everything you need for everyday home charging. A practical and affordable choice for those who value ease of use over complicated or costly additional features.

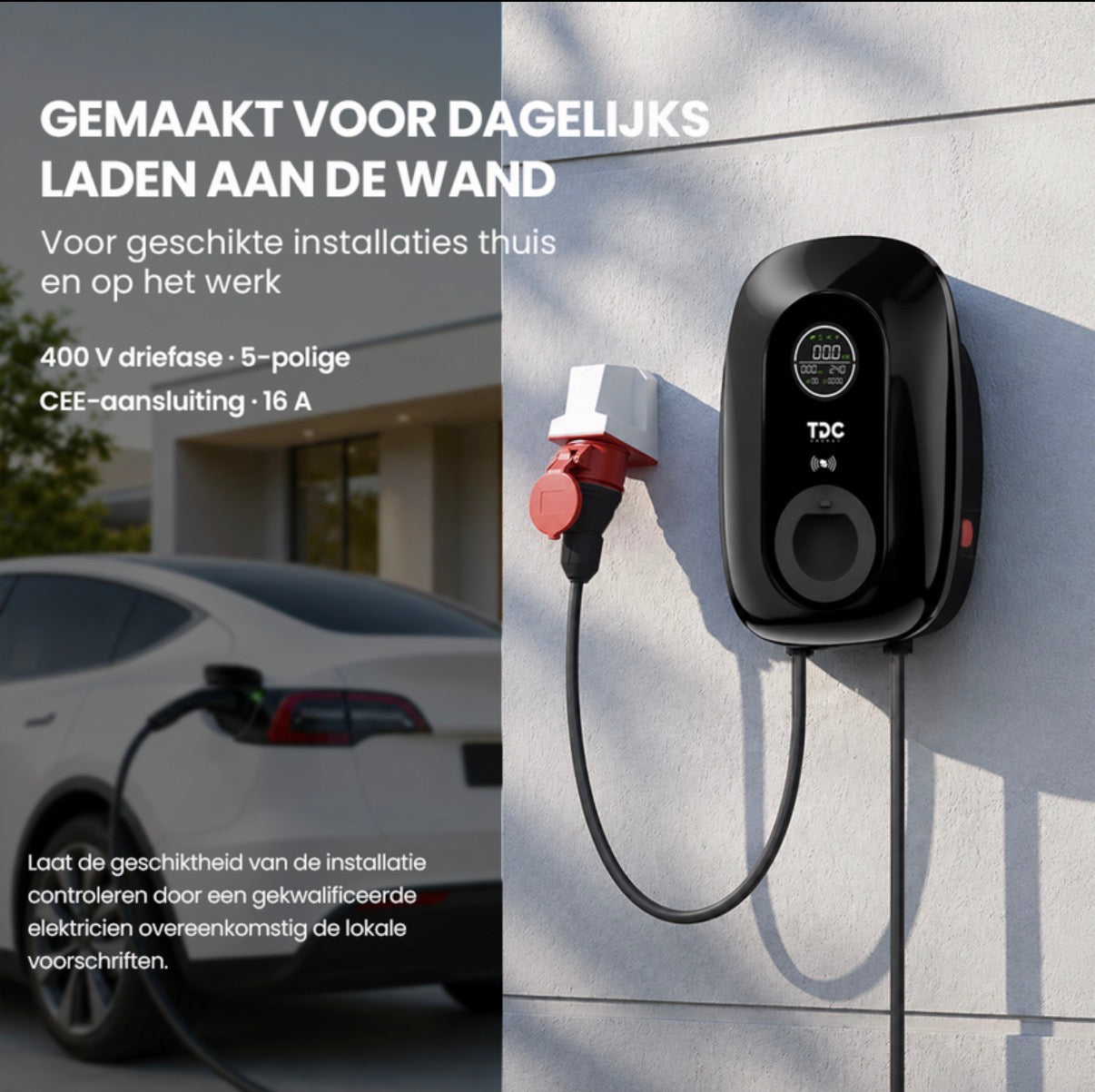

Important for installation

The charging station must be used with a suitable, correctly grounded three-phase 400 V installation and a 5-pin CEE 16 A socket. Have the connection and electrical protection checked in advance by a qualified electrician.

When installed outdoors, a sheltered installation location or canopy is recommended. Do not use the charging station if the housing, plug, or charging cable is damaged.
